Compact Inserting System

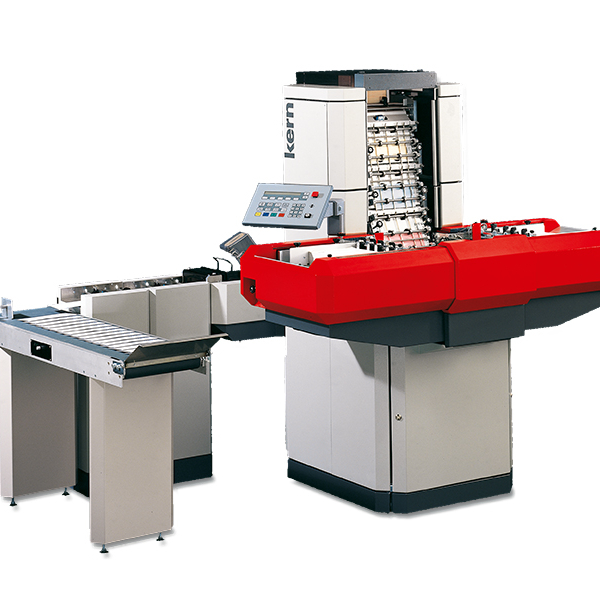

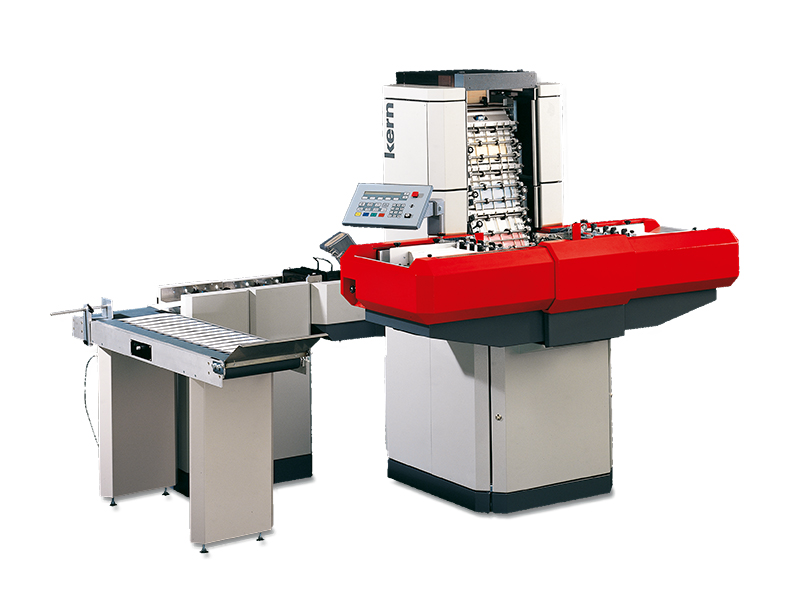

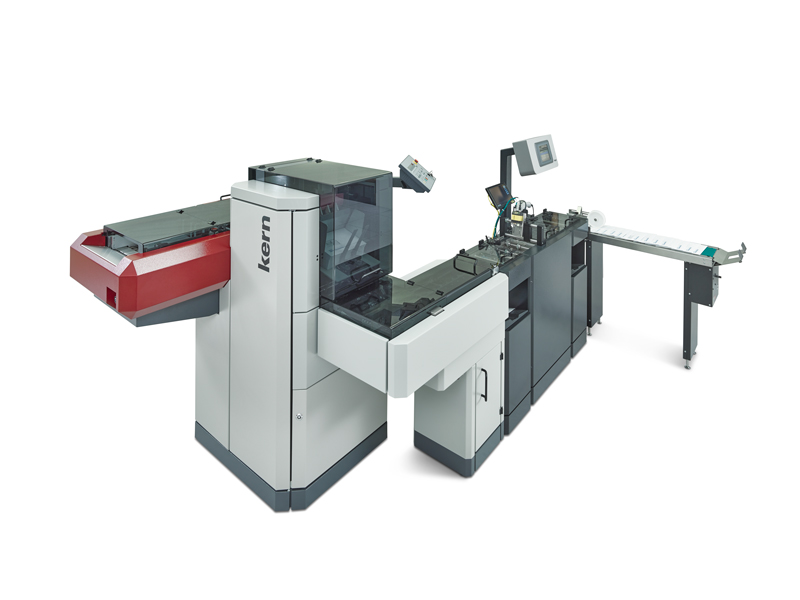

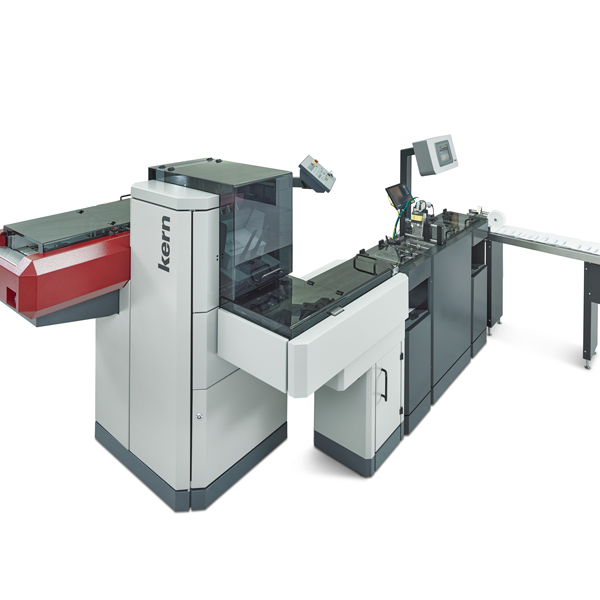

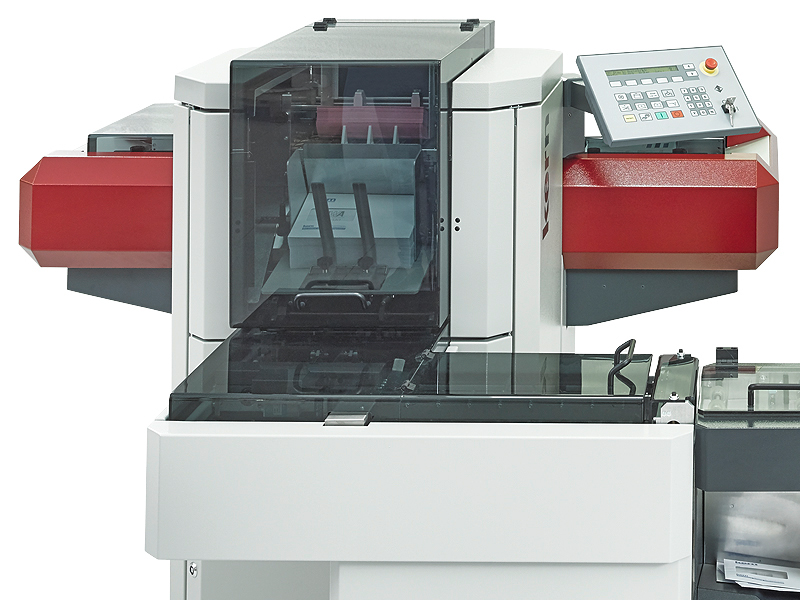

The inserting system Kern 686 is the proven, compact inserting system with the ability of processing single sheets up to a size of DIN-A3 and up to 3 inserts for small to medium shipping volumes.
Kern 686 – modular and upgradeable
To insert a DIN-A3 form into a A6 envelope doesn’t pose a problem for the Kern 686 inserting system, because the integrated folding systems allow any combination of parallel and cross folding.

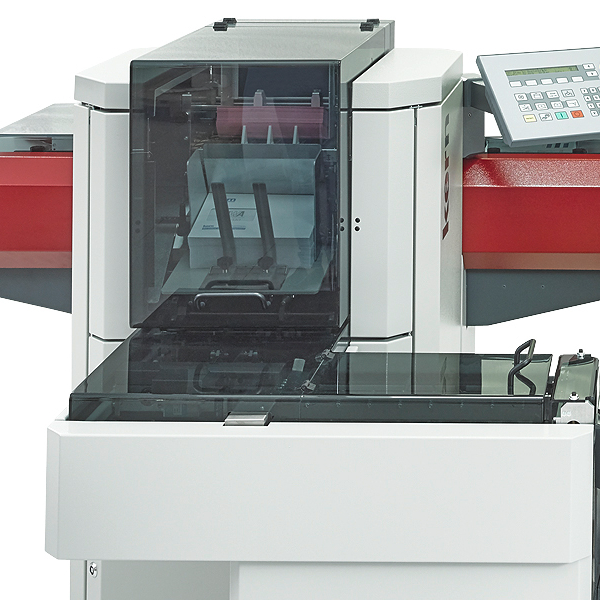

Patented steel packing pockets hold the forms during the insertion process into the envelope. As with manual inserting, the inserts are correctly put in the fold.
In just one step the Kern 686 compares, folds and inserts the documents and seals the envelopes at high continuous output.

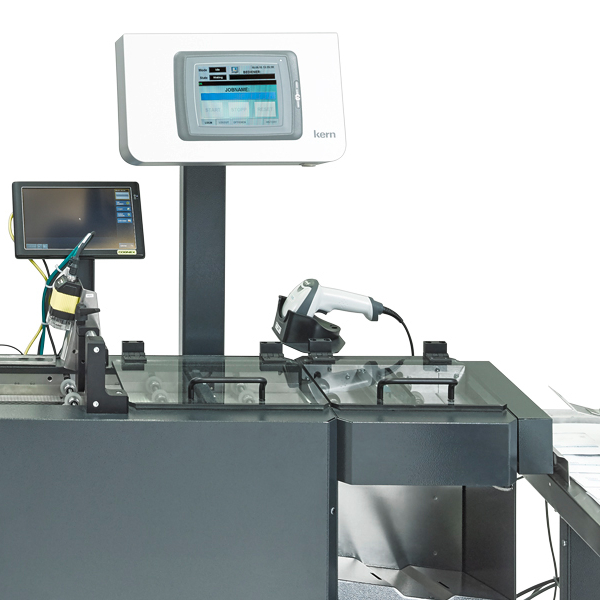

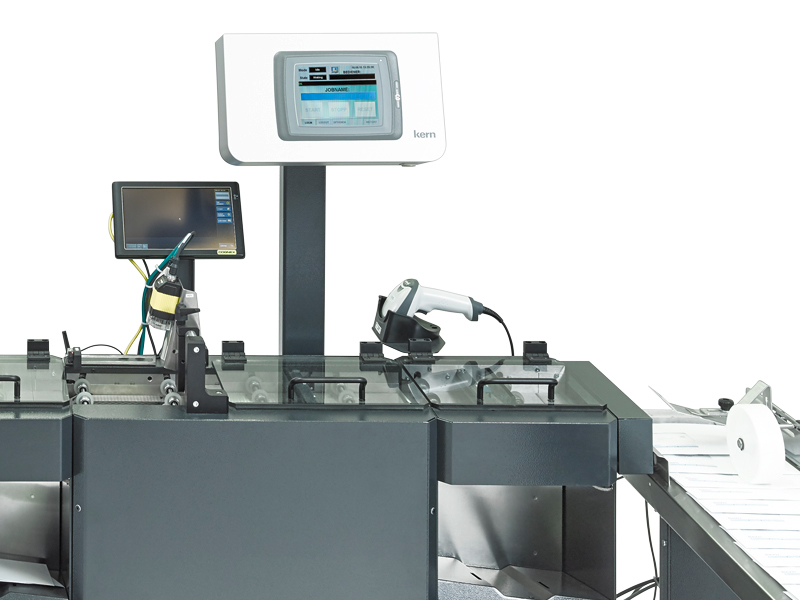

mailFactory® accompanies and supports the inserting process with the reading module at the exit.
The inserting system Kern 686 can be configured with following modules:
- 2 folding stations for feeding of single sheets
- Up to 3 enclosure stations
- OMR-, Barcode- and Datamatrix reading ex folding station
Product Sheet Kern 686
2 MB
Inserting with our reliable and compact classic, the Kern 686.
Features Kern 686 at a glance: proven and compact
- Document format as from folding unit of at least. 148 × 80 mm up to 432 × 318 mm
- Processing of up to 7,200 env/h
- Envelope format C6 to C5
- Completely integrable into ADF mailFactory® of Kern
- Maximum flexibility and efficiency
- Automatic format settings (optional)
- Highest document security when processing
- Small to medium production volumes
